SHOWA SOKKI

日本SHOWA SOKKI

Types and Specifications of Strain Gages

Kinds	Uniaxial Strain Gages	Biaixal Strain Gages	Triaxial Strain Gages	Stress Concentration Measurements
Pattern Code	N11...	N22...	N32...	R11,N51,R51...
Lead wire pre-attached	N11...VS...	N22...VS...	N32...VS...	R11,N51,R51...VS...
Basic pattern

Kinds	Uniaxial 45°	Diaphragm Type	Crack Detection	Pipe Gage
Purpose	Shearing stress and torque measurement	Pressure sensor	Crack propagation detection and analysis	Bolt spindle power measurement -Click-
Pattern Code	Z11,Z23...	Q44...	X11,C11...	P11...
Basic pattern

Tension & Compression Load Cells Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
SH	Shear beam type,Small,General Purpose	1kN,..10MN	0.15	0.75~1.5±1%	－10 to 60
SHE	Shear beam type,High output,General Purpose	5kN,..1MN	0.05 to 0.15	2.0±1%	－10 to 60
SHE-U	Shear beam type,Water Proof※1	5kN,..200kN	0.05	2.0±1%	－10 to 60
SHE-LH	Shear beam type,High & Low Temperature※1	5kN,..200kN	0.2	2.0±20%	－40 to 150
SHU	Shear beam type,High Accuracy	10kN,..1MN	0.03	2.0±1%	－10 to 60
RCT	Pipe type,General Purpose※2	10kN,..1MN	0.2	1.5±1%	－10 to 60
RCB	Coaxial beam type,General Purpose※3	50N,..5kN	0.15	1.5±1%	－10 to 60
RCT-E	Coaxial beam type,High Accuracy,General Purpose	10N,..5kN	0.05	1.5±1%	－10 to 45
DBU	Coaxial beam type,High Accuracy	50N,..5kN	0.02	2.0±1%	－10 to 60
BUX	Coaxial beam type,Low-profile & High Accuracy※1	100N,..5kN	0.012	2.0±0.1%	－10 to 50
CUX	Coaxial beam type,High Accuracy,Atmospheric pressure balance※1	200N,..5kN	0.02	1.5±0.3%	－10 to 60

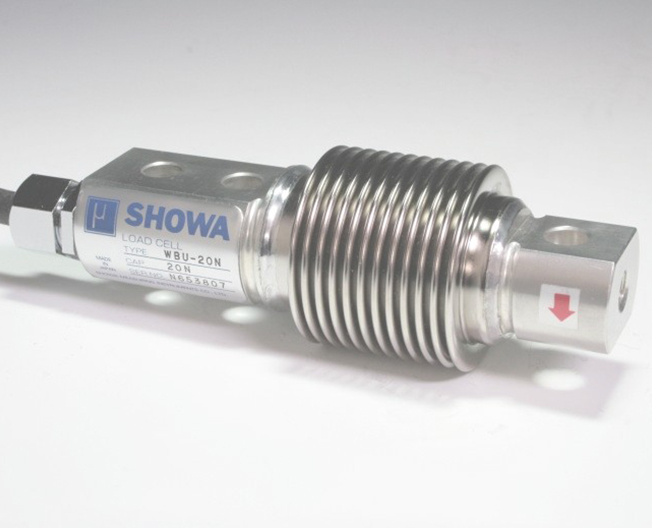

WBU	Beam type,High Accuracy,Metal bellows,General Purpose	10N,..2kN	0.015	2.0±1%	－10 to 60
WBE	Beam type,High Accuracy,High output,General Purpose	50N,..10kN	0.05	3.0±1%	－10 to 60
WBS	Beam type,High Accuracy,Small size,General Purpose	50N,..2kN	0.05	3.0±1%	－10 to 60
WBJ	Beam type,Ultralow-Capacity,High Accuracy,General Purpose	0.2N,..2N	0.035	1.0±10%	－10 to 45
WBF-J	Beam type,Ultralow-Capacity,High Accuracy,"G" Non-Sensitivity	0.3N,..1N	0.035	1.0±10%	－10 to 45
DBJ	Coaxial beam type,Ultralow-Capacity,High Accuracy,General Purpose	1N,..20N	0.025	2.0±5%	－10 to 45

* Items with Marks (※1) are produced only on order placed.
* Cap.500kN & 1MN with Marks (※2) will have Compression calibration data only.
* It's Compression calibration with Marks (※3) only. / Tension is optional calibration.

Compression Load Cells Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
RCU	Coaxial beam type,High Accuracy,General Purpose	10kN,..200KN	0.03	3.0±1%	－10 to 60
RCE	Column type,High output,General Purpose※1	5kN,..1MN	0.2	2.0±1%	－10 to 60
RC	Column type,Spherical mounting plate,General Purpose	10kN,..5MN	0.2	1.5±1%	－10 to 60
RCD	Coaxial beam type,General Purpose	500N,..200kN	0.15	2.0±1%	－10 to 60

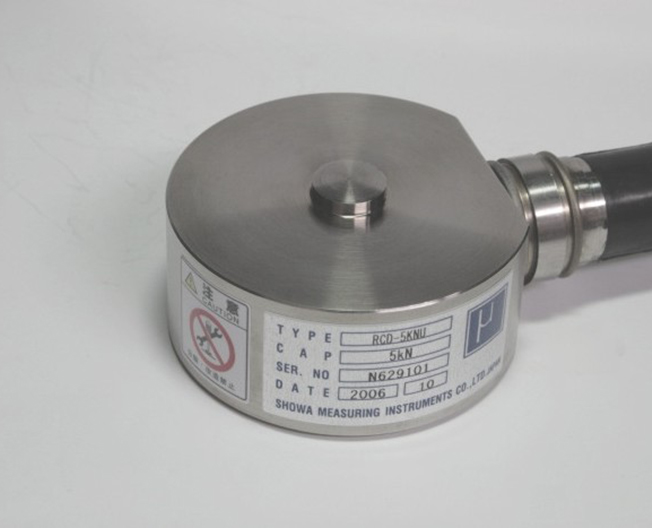

RCD-U	Coaxial beam type,Water Proof,General Purpose	500N,..200kN	0.15	2.0±1%	－10 to 60
LSM	Beam type※1	5kN,..20kN	0.05	2.0±1%	－10 to 60
LSS	Coaxial beam type	5kN,..20kN	0.05	2.0±1%	－10 to 60
MRD	Ultra-small type,General Purpose	10N,..10kN	1	1.0±20%	0 to 60
MRU	Ultra-small type,General Purpose	200N,..1kN	2	1.0±20%	0 to 60
MR-251	Ultra-small type,General Purpose	20N,50N	0.5	1.0±20%	0 to 60
MR	Small type,General Purpose	5N,..100N	1	1.0±20%	0 to 60
HCS	Small & Washer type,measurement of axial power of bolts,General Purpose※1	25kN,..100kN	35	1.5 to 1.8±20%	－10 to 60
PHC	Center Hole type,General Purpose※1	10kN,..1MN	.02	1.5±1%	－10 to 60
HC	Center Hole type,General Purpose※1	10kN,..1MN	.02	1.5±1%	－10 to 60
HCW	Washer type,Rolling mill & Forging press machine※1	1MN,..5MN	1	1.0±1%	－10 to 60
HCWB	Low cost,Washer type,General Purpose※1	30kN,..500kN	1	1.0±1%	－10 to 60

* Items with Marks (※1) are produced only on order placed.

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
RTU	Coaxial beam type,High Accuracy,General Purpose	10kN,..200MN	0.03	3.0±1%	－10 to 60
RTE	Coaxial beam type,High Accuracy,General Purpose※1	2kN,..200KN	0.05	3.0±1%	－10 to 60
RTD	Coaxial beam type,General Purpose	500N,..20kN	0.15	2.0±1%	－10 to 60
RTD-U	Coaxial beam type,Water Proof,General Purpose	500N,..20kN	0.15	2.0±1%	－10 to 60
RTB	Coaxial beam type,Attached Rod-end,General Purpose	50N,..5KN	0.2	1.5±1%	－10 to 60
MRDT	Ultra-small type,General Purpose	50N,..2kN	1	1.0±20%	0 to 60
DB	Coaxial beam type,High Accuracy,General Purpose	200N,..20kN	0.02	3.0±1%	－10 to 60
DBS	Coaxial beam type,High Accuracy,Low Cost,General Purpose	200N,..50kN	0.05	3.0±1%	－10 to 60

Torque Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
TP-L	Reaction Torque type,Ultralow-Capacity,Aluminum alloy※1	1,..100 N•cm	0.3	1.0±20 %	－10 to 40
TP-R	Reaction Torque type,Low-Capacity,High stiffness,Aluminum alloy※1	50,..1000 N•cm	0.2	1.0±20 %	－10 to 40
TP	Reaction Torque type,High stiffness,Flange at both ends,General Purpose	50,..20 kN•m	0.2	1.0±1 %	－10 to 60
TQP	Rotary Torque type(with Slip-ring assemblies),General Purpose※1	5,..20 KN•m	0.3	0.5,1.0,1.5±1 %	－10 to 60

* Items with Marks (※1) are produced only on order placed.

Pressure Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
HVS	High Accuracy type	0.5,..50MPa	0.2,0.3	1.0,1.5±1%	－10 to 60
HVU	General Purpose type	1,..50MPa	0.3,0.5	1.5,2.0±1%	－10 to 60
HVJS	Small & High Temperature type	1,..50MPa	0.5	1.0,1.5±20%	－10 to 150
HVJS-JG	Small & High Temperature type,Vibration-proof	1,..10MPa	0.5	1.0,1.5±20%	－10 to 150
HVM	Flush-Diaphragm type,General Purpose	1,..50MPa	0.5	1.0,1.5±20%	－10 to 60
HVH-B	High pressure range type	50,..200MPa	0.3	0.5±1%	－10 to 60
HVA	4~20mA output(3-wire)※1	5,..50MPa	0.5	4 to 20mA	0 to 60
HVML	Small & Low Cost,integrated type※1	1,..50MPa	0.5	1.5±20%	0 to 60

* Items with Marks (※1) are produced only on order placed.

Displacement Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
TCLA-A	Sliding resistance wire type	30,..300mm	0.2	1.5±1%	0 to 50
TCLA-B	Sliding resistance wire type,High output	50,100mm	0.2	2.5,5±1%	0 to 50
TCL-FA	Dial-gage type	5,..30mm	0.5	1.5±1%	5 to 40
TCL-S	Long stroke & Sliding resistance wire type	500,..2000mm	0.3	1.5±1%	0 to 50
TCL-M	Small & Cantilever type,Low Cost	5,..50mm	0.5	1.5±1%	0 to 50
TCL-L	High response & Inductance type※1	±5,..±100mm	0.3	1.5±10%	0 to 50
TCL-LR	Inductance type with spring in※1	2.5,..100mm	0.3	0.75,1.0,1.5±20%	0 to 50

* Items with Marks (※1) can be built only on order and exclusive amplifier(Type 5783) is necessary.

Acceleration Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
SAL	Uniaxial & High output type	±20m/s2,..±200m/s2	1	1.1±30%	－10 to 60
SAH	Uniaxial & High response type	±100m/s2,..±10km/s2	1	0.55±30%	－10 to 60
SALT	Triaxial & High output type※1	±20m/s2,..±200m/s2	1	1.1±30%	－10 to 60
SAHT	Triaxial & High response type※1	±100m/s2,..±10km/s2	1	0.55±30%	－10 to 60

* Items with Marks (※1) are produced only on order placed.

Special Transducer Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
MDF	6-Component force sensor※1	1 kN,..10 kN/Fx,..	0.4	1.2±15 %	0 to 60
MD2	High-accuracy 2 Component Load Cell※1	50 N,..500 N	0.025	1.0±1 %	－10 to 60
SK	Shift-knob force sensor※1	100 N,..500 N	0.1	1.0±20 %	－10 to 40
FR	Pedal-force sensor※1	100 N,..1 kN	0.2	1.5±20 %	－10 to 40
MMF	Torque & Spindle power Transducer※1	0.2 N•m /20 kN,..	0.2	1.0±1 %	－10 to 60
PSD	Load Cell with amplifier,Low Cost	2 N,..100 N	0.2	±10 V	0 to 40
DBV	Load Cell with amplifier,Low Cost	200 N,..10 kN	0.1	±10 V	0 to 40
Under Construction	Steering force and angle	50 N•m /±1440゜	0.3	1.0±20 %	0 to 60
MUF...	Unit of weight measurement(A)※1	30 N,120 N,240 N	0.02	2.0±5 %	－10 to 60
Under Construction	Unit of weight measurement(DUX)	200 N,..30 kN	0.03	1.0±1 %	－10 to 50
RCT-580	Load Cell for Positioning Stages	20 N,..1 kN	0.05	1.0±1 %	0 to 50
