SHIBUYA
日本SHIBUYA

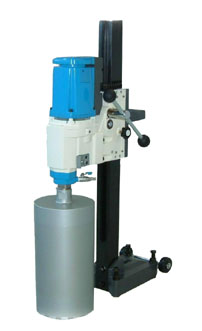

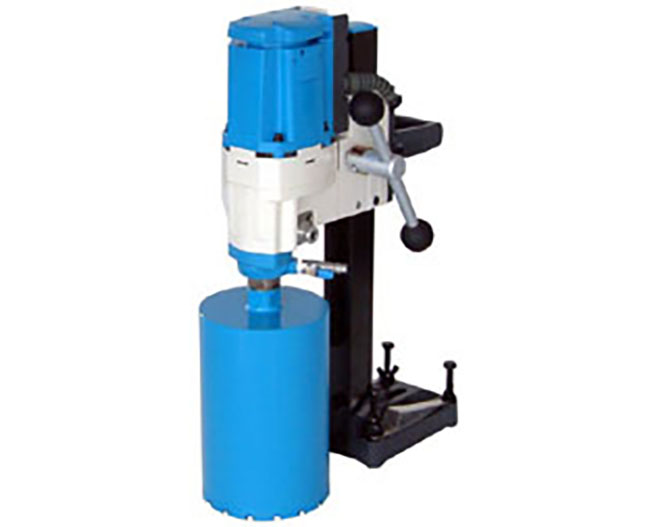

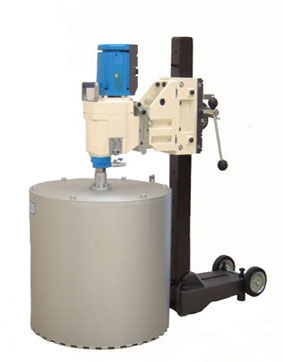

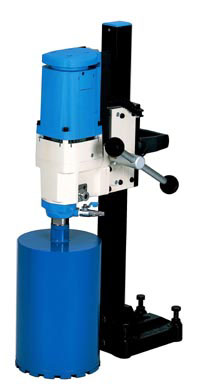

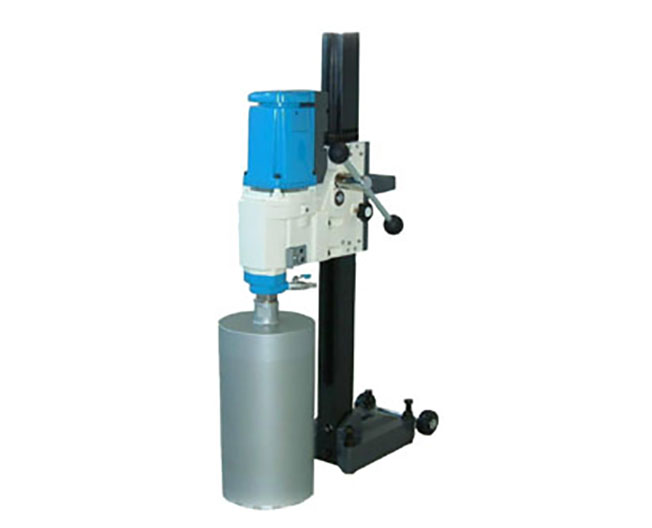

日本SHIBUYA鉆孔機 DRILL
 |
 |
 |
 |
|
|
DRILL STAND MODEL
|
TS-092 (AB42)
|
TS-132
|
TS-162
|
|
|
MAX.DRILLING CAPACITY
|
120MM
|
160MM
|
180MM
|
|
|
OVERALL HEIGHT
|
805MM
|
803MM
|
803MM
|
|
|
BASE SIZE
|
146 x 200MM
|
146 x 205MM
|
146 x 205MM
|
|
|
TOTAL STROKE
|
557MM
|
548MM
|
548MM
|
|
|
MOTOR MODEL
|
R1011
|
R1511
|
R1521
|
R1522
|
|
VOLTAGE
|
110-120V
|
110-120V
|
110-120V
|
110-120V
|
|
/220-240V
|
/220-240V
|
/220-240V
|
/220-240V
|
|
|
RATED INPUT
|
1.1KW
|
1.5KW
|
1.5KW
|
1.5KW
|
|
FREQUENCY
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
SPINDLE REV.SPEED
|
970min-1
|
850min-1
|
700 / 1000min-1
|
700 / 1400min-1
|
|
(NON-LOAD)
|
||||
|
SPINDLE THREAD
|
A-rod / G1/2"
|
UNC 1-1/4" /A-rod
|
UNC 1-1/4" /A-rod
|
UNC 1-1/4" /A-rod
|
|
Drill Stand Model
|
TS-182
|
TS-252
|
TS-252 (AB52) *1
|
|
|
Max. Applicable Range
|
200 mm
|
250 mm w/
|
250 mm w/
|
|
|
Spacer
|
Spacer
|
|||
|
Height
|
803mm
|
803mm
|
1003mm
|
|
|
Base size
|
158×217mm
|
158×217mm
|
146×205mm
|
|
|
Available stroke
|
488mm
|
488mm
|
688mm
|
|
|
Weight
|
9.4Kg
|
9.4Kg
|
10.4Kg
|
|
|
Drill Motor Model
|
R1711
|
R1721
|
R1722 *2
|
|
|
Revolutions / No-Load
|
700min-1
|
450 / 900 min-1
|
800 / 1300 min-1
|
|
|
Voltage
|
AC220－240V / AC110-120V
|
|||
|
Rated Input
|
1.7 KW.
|
|||
|
Frequency
|
50/60 Hz
|
|||
|
Spindle Thread
|
A－ROD
|
A-ROD / UNC 1 1/4”
|
||
|
Weight (excl. Plug & Cable)
|
7.0 Kg.
|
8.8 Kg.
|
8.8 Kg
|
|
|
Drill Stand Model
|
TS-403 / TS-402
|
TS-603
|
|
|
|
Max. Applicable Diameter
|
400 mm w/ Spacer
|
600 mm w/ Spacer
|
||
|
Height
|
1003mm
|
1100mm
|
||
|
Base size
|
176×275mm*
|
300×483mm
|
||
|
Available stroke
|
618mm
|
625mm
|
||
|
Weight
|
17.6Kg.
|
45.2 Kg.
|
||
|
Drill Motor Model
|
R2221
|
R2231
|
R2531
|
|
|
Revolutions / No-Load
|
300 / 700 min-1
|
300 / 800 / 1400 min-1
|
|
|
|
Voltage
|
AC220－240V / AC110-120V
|
|||
|
Rated Input
|
3.1 KW (110-120V model)
|
|||
|
2.8 KW (220-240V model)
|
||||
|
Frequency
|
50/60 Hz
|
|||
|
Spindle Thread
|
A-ROD / UNC 1 1/4”
|
|||
|
Weight (excl. Plug & Cable)
|
12.7 Kg.
|
13.6 Kg.
|
20.2 Kg.
|
|
|
Model
|
TS-160H
|
TS-250H
|
TS-450H
|
TS-700H
|
|
Applicable hole diameter (mm)
|
Up to 160
|
110-255
|
160-450
|
255-700
|
|
Full height (mm)
|
1003
|
1003
|
1003
|
1100
|
|
Base width (mm)
|
180
|
180
|
215
|
298
|
|
Base depth (mm)
|
244
|
245
|
300
|
330
|
|
Full stroke (mm)
|
613
|
598
|
598
|
617
|
|
Motor model
|
S-050
|
S-100
|
S-160
|
S-280
|
|
Maximum hydraulic fluid flow (liter/min.)
|
43
|
53
|
53
|
49
|
|
Normal constant pressure (kg/cm2)
|
120
|
110
|
105
|
85
|
|
Normal constant torque (kg-m)
|
7.1
|
12.5
|
21
|
28
|
|
Speed (rpm at 40 liter/min.)
|
780
|
408
|
247
|
142
|
|
Speed (rpm at 40 liter/min.)
|
34.3
|
36.1
|
38.3
|
58.2
|
|
Model
|
TS-131
|
TS-1601
|
TS-1801
|
TS-3501
|
TS-4501
|
|
Max. Service Dia.
|
130mm
|
160mm
|
180mm
|
350mm
|
450mm
|
|
Overall Height
|
800mm
|
800mm
|
800mm
|
1000mm
|
1003mm
|
|
Base Size
|
130x180mm
|
146x190mm
|
170x207mm
|
180x244mm
|
180x245mm
|
|
Total Stroke
|
560mm
|
540mm
|
490mm
|
610mm
|
598mm
|
|
Motor Model No.
|
M1312
|
M1718
|
MA2211F
|
M2225
|
MA2521
|
|
Voltage (Vac)
|
220-240
|
220-240
|
220-240
|
220-240
|
220-240
|
|
Rated Amp.(amp)
|
5.9
|
7.7
|
7.7
|
10
|
11
|
|
Frequency(hz)
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Non-Load RPM
|
900
|
750
|
900/450
|
700/300
|
700/300
|
|
Spindle Thread
|
M27/G1/2"
|
A-ROD/UNC
|
A-ROD/UNC
|
A-ROD/UNC
|
A-ROD/UNC
|
|
Total Weight(kg)
|
12.6
|
|
22.6
|
31.2
|
35.5
|
